7-in-1 Open Source Cartridge Reader V5 – Retro Game ROM Dumper for GB/GBA/NES/SNES/N64/Genesis/SMS – DIY 3D Printed Shell

Description

The 7-in-1 Cartridge Reader V5 is an open-source retro gaming tool designed to dump ROMs and back up save data from a wide range of classic game cartridges. It supports Game Boy, Game Boy Color, Game Boy Advance, NES, Famicom, SNES, Super Famicom, Nintendo 64, Sega Genesis, Mega Drive, and Sega Master System, making it a powerful all-in-one solution for collectors and enthusiasts.

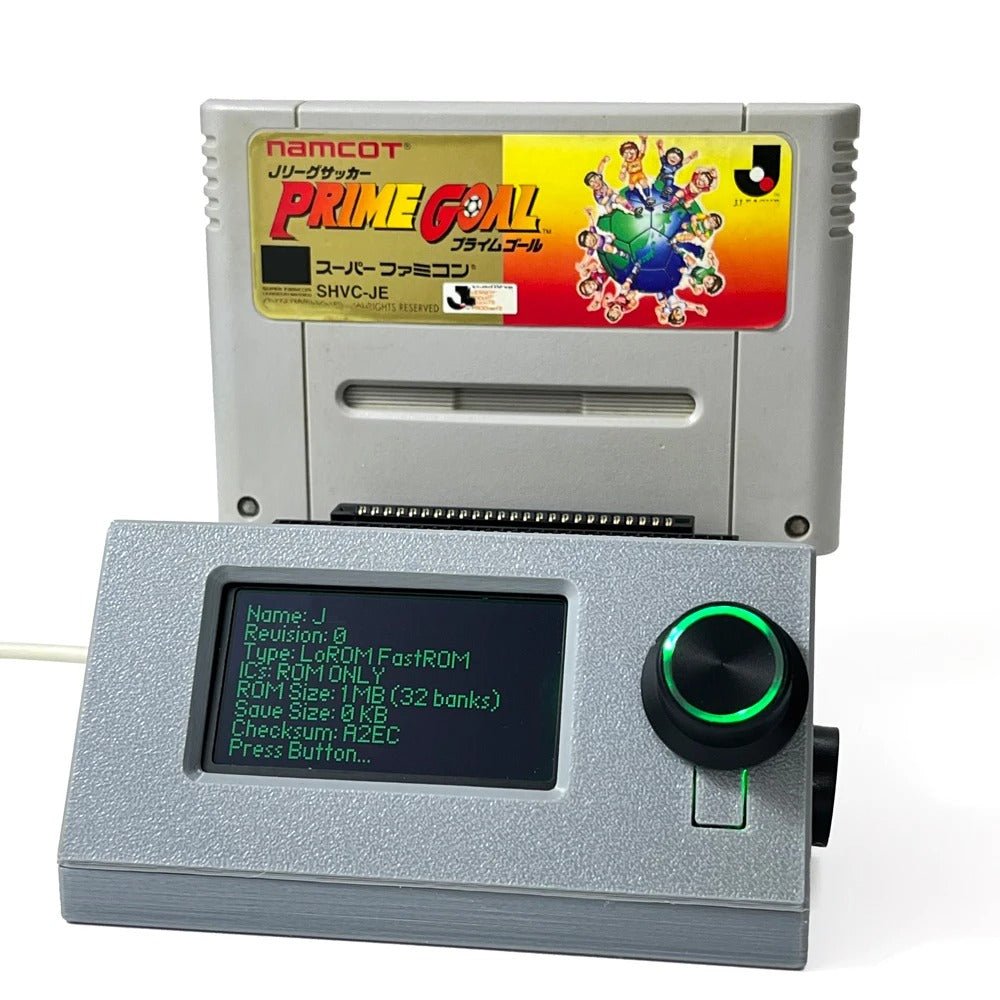

Equipped with a built-in LCD screen, the device displays menus and cartridge information clearly, while the rotary control knob allows smooth navigation and easy selection. A reset button provides quick system restarts, and the SD card slot supports FAT, FAT32, and exFAT formats for storing your dumped files.

The reader utilizes an SI5351 clock generator to ensure compatibility with more advanced cartridges, including those with special chips and certain Nintendo 64 save types. Setup is straightforward: load the required system files onto an SD card, insert a cartridge, power the device via USB, and use the controls to dump ROMs or save data directly to your SD card.

For safe operation, only one cartridge should be inserted at a time, and cartridges should only be handled while the device is powered off. Cleaning cartridge contacts before use is recommended for best performance, and firmware updates should be done without any cartridge inserted.

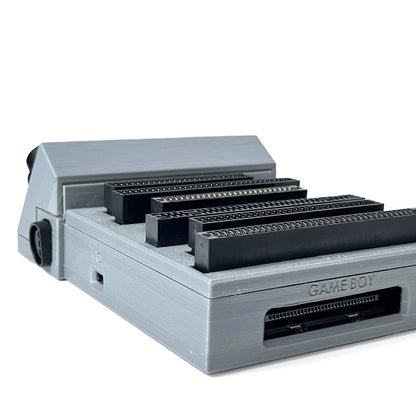

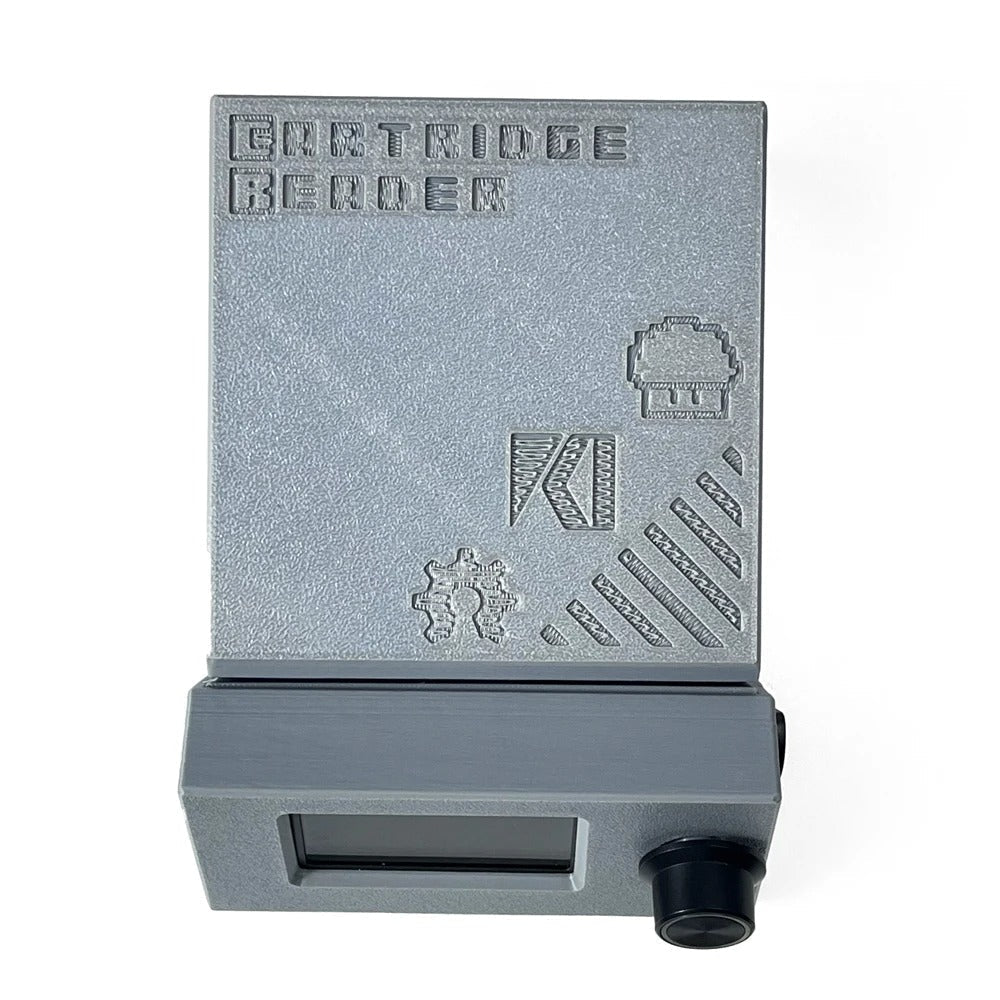

This listing includes the cartridge reader unit with a 3D printed shell. Please note that an SD card, USB cable, and firmware files are required but not included. This device is ideal for retro gaming collectors, preservation, and anyone interested in backing up and managing their physical game library.
